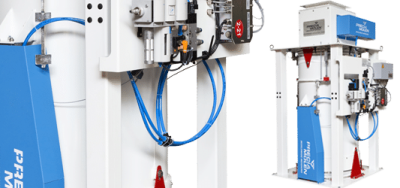

Hopper scale ABS-XL

The automatic bulk scale ABS-XL / HF is designed for high flow weighing of dry commodities with good flowability such as cereals and fertilizers. With a range width from 200 to 4 000 m3/h, the ABS XL & HF are particularly suitable for the loading-unloading station in grain elevators to manage the ship/train/truck in-bound and out-band.

All ABS XL HF models exist for both Safe and Explosive area, with certified components and specific national approvals.
Due to its very high capacity, ABS XL / HF are mainly used for Trade Use applications so all the range can be installed under NTEP or OIML certification (0,2 Class)
As loading-unloading high capacity vessels take time, many things can happen during this critical phase. Because any accuracy drop will generate huge costs (product loss or penalties), we developed a specific redundancy device which executes two separate weighings of your batches and compares them as often as you want, without any stop of the work. ”

The ABS-XL / HF hopper scale is particularly appropriate for use on food plants and with storage and port silos. The ABS-XL hopper scale is designed for process weighing of dry granulous products, which flow well, such as cereals. Together with the I 410 ABS instrumentation system, the hopper scale acts as a discontinuous totalizer with non-constant batch weighing. Its simple and yet solid design makes for easy installation and maintenance.

The ABS-XL hopper scale comprises two main parts:

  • A feed section which must be fitted under the product feed upper bin. This section is equipped with one, two or three feed gates depending on the model.
  • A weigh hopper supported by four load cells fitted on a rectangular frame. This metal frame is supported by the floor or the support frame.

The weigh hopper is equipped with one, two or three discharge gates depending on the model.



Software Associates

Indicator I 410 ABS Hopper scale software

The system equipped with I 410 ABS hopper scale software is the measuring and control device for PRECIA MOLEN hopper scales. The I 410 ABS system may also replace different indicators on existing installations. The I 410 ABS software may control any type of hopper scale: – hybrid with levers or 100% electronic, – with one or several filling gates.

I 410 GFS Software for gravimetric filling scale

The I 410 GFS software is the measuring and slaving device developed by PRECIA MOLEN for controlling the single or dual weigh hopper gravimetric filling scale. Our electronic system equipped with I 410 GSF software can replace any type of existing built-in indicator in the semi-automatic or automatic bagging lines. In fact, this software allows measuring the weight and controlling one to two net or gross weighers-weighing bagging scales.
